1.51 Inch Transparent Oled Panel Mini Transparent Oled Display For Creative Electronics
สถานที่กำเนิด | จีน |
---|---|
ชื่อแบรนด์ | HuaXin |
ได้รับการรับรอง | ISO14001/ ISO9001/IATF16949 |
หมายเลขรุ่น | ESHX0205FPOINO11-C001A |
จำนวนสั่งซื้อขั้นต่ำ | 1,000 |
ราคา | โปร่ง |
รายละเอียดการบรรจุ | Blister+Foam Box+Bubble Bag+Inside Carton+Master Carton |
เวลาการส่งมอบ | 6 สัปดาห์ ~ 8weeks |
เงื่อนไขการชำระเงิน | t/t |
สามารถในการผลิต | 50k ต่อเดือน |

ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xรายละเอียดสินค้า
เทคโนโลยีแสดงผล | โมดูลการแสดงผล AMOLED | ชื่อ | สี OLED |
---|---|---|---|
ขนาด | 2.5" | ปณิธาน | 368*488 |
ความสว่าง | 800cd/m2 | ส่วนต่อประสาน | mipi qspi |
เน้น | 1.51 inch transparent OLED display,mini transparent OLED panel,AMOLED display module for electronics |
รายละเอียดสินค้า

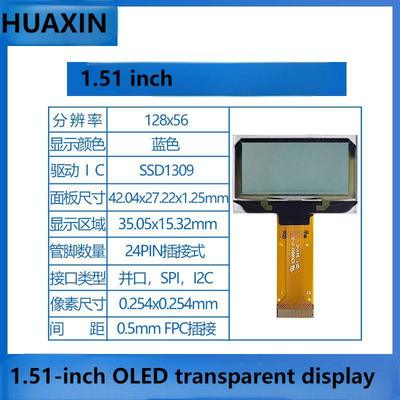

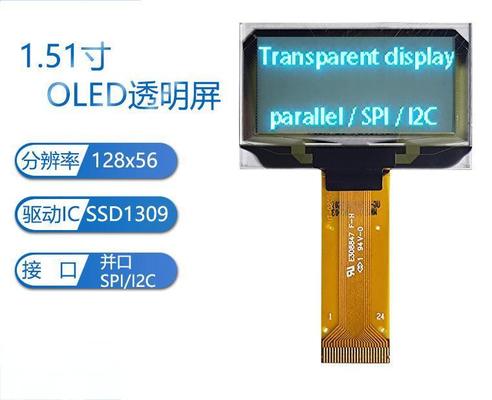

1.51 Inch Transparent OLED Panel Mini Transparent OLED Display
1.51-inch transparent OLED display with 128×56 resolution, 24-pin plug-in interface. Ideal for smart windows, creative electronics, and self-luminous transparent screen applications.
Product Parameters
Attribute | Value |
---|---|
Display Technology | AMOLED Display Module |
Resolution | 128×56 |
Screen Size | 1.51 inch |
Display Color | Blue |
Pin Count | 24PIN |
Interface | 3-bit68XX/80XXParallel4-wireSPl 12C |
Active Area | 35.05×15.32 mm |
Module Size | 42.04×27.22×1.25 mm |
Driver IC | SSD1309 |
Part Number | HX2856KLBG01 |

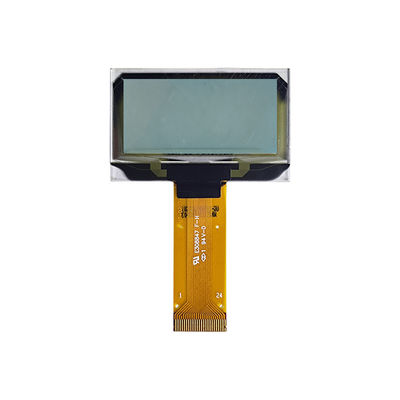

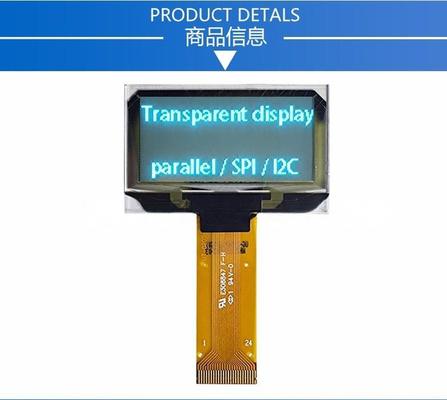

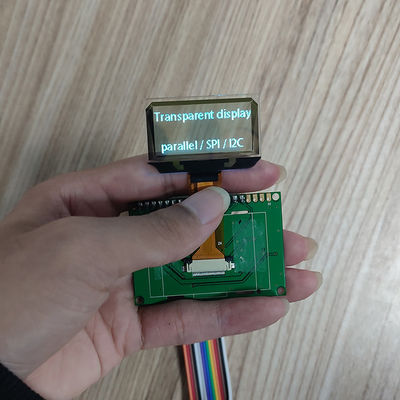

Product Images





Drawing and Pin Definition


OLED Product Knowledge
OLED Advantages
- Lighter and thinner than LCDs
- High contrast and color saturation
- Lower power consumption
OLED Disadvantages
- More expensive than LCD and TFT
- Shorter lifetime than LCD and TFT
Company Information
Huaxin Advantage
- Factory base located at inland city with cost-effective operations
- Most advanced equipment ensuring stable quality
- Fully automated processes for efficiency and quality consistency
- Professional engineers with over 20 years experience in LCD field
- Custom product design capabilities
Our Certificates
ISO14001 / ISO9001 / IATF16949 / SGS of LCD module
Company Details
- Huaxin Technology (Enshi) Co., LTD
- Hubei, Enshi
- Founded: 2009
- High technology enterprise specializing in R&D, production and sales of LCD, LCM, TFT, backlight, OLED
- LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
- LCM includes: COB, TBA, COG, TP, LED backlight and other series
- Registered capital: twenty million
- Current staff: 500+
- R&D accounts for 10%
- QC accounts for 15%
Production Capacity
Annual Production Capacity | 2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark |
---|---|---|---|---|---|---|
LCD Production | 4.5 | 9 | 9 | 9 | 9 | Unit: thousands of logarithms/Day |
LCM Production | 70 | 150 | 300 | 450 | 450 | Unit: Thousand piece/Day |
Backlight Production | 100 | 200 | 300 | 500 | 500 | Unit: Thousand piece/Day |
OLED Production | 10 | 20 | 30 | 40 | 50 | Unit: Thousand piece/Day |
Product Applications
- Safety box & instrument
- Lock & smart home
- Transmitter & watch
- Watch & radio
- Collimator & navigator
AMOLED Display Characteristics
- Self-Emissive Pixels
- Contrast Ratio
- Color Accuracy and Vibrancy
- Viewing Angles
- Power Efficiency
- Thinness and Flexibility
- Response Time
Power Efficiency Comparison
Power Consumption
- AMOLED displays consume power per-pixel, with dark content using minimal power
- LCD/LED displays require constant backlight power regardless of content
Content Dependency
- AMOLED more efficient for dark content as pixels can be turned off
- LCD/LED power consumption remains constant regardless of content
Brightness Control
- AMOLED can adjust pixel brightness individually for better efficiency
- LCD/LED typically have fixed backlight brightness
Display Size
- AMOLED more efficient for smaller displays as consumption scales with pixels
- Larger LCD/LED may require more power-hungry backlights
